Thromb Haemost 2021; 121(01): 046-057
DOI: 10.1055/s-0040-1715648
Coagulation and Fibrinolysis

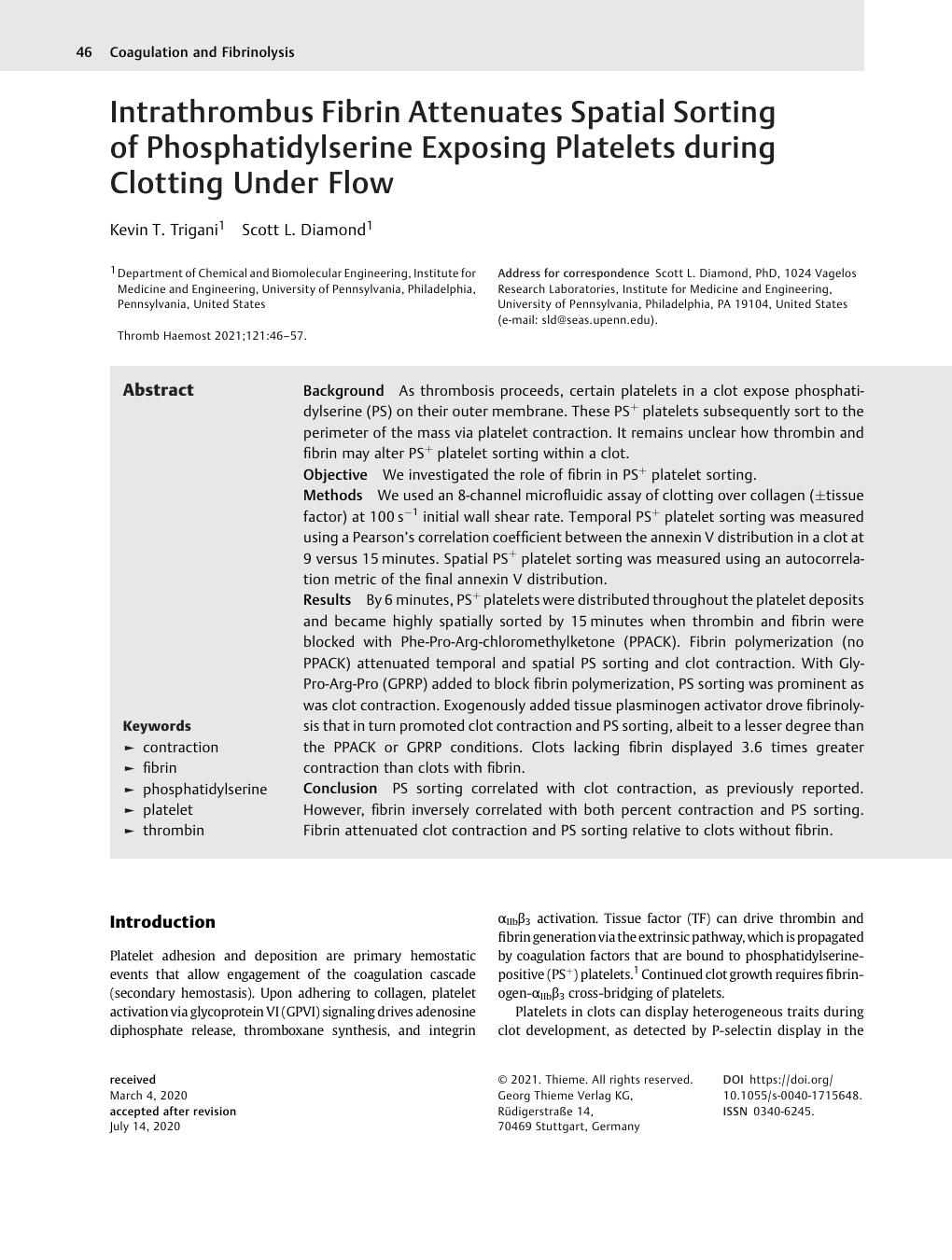

Intrathrombus Fibrin Attenuates Spatial Sorting of Phosphatidylserine Exposing Platelets during Clotting Under Flow

Kevin T. Trigani
1   Department of Chemical and Biomolecular Engineering, Institute for Medicine and Engineering, University of Pennsylvania, Philadelphia, Pennsylvania, United States
,
Scott L. Diamond
1   Department of Chemical and Biomolecular Engineering, Institute for Medicine and Engineering, University of Pennsylvania, Philadelphia, Pennsylvania, United States
› Author Affiliations
Funding This study was supported by National Institutes of Health grants U01-HL-131053 and R01-HL-103419 to S.L.D.

Abstract

Background As thrombosis proceeds, certain platelets in a clot expose phosphatidylserine (PS) on their outer membrane. These PS+ platelets subsequently sort to the perimeter of the mass via platelet contraction. It remains unclear how thrombin and fibrin may alter PS+ platelet sorting within a clot.

Objective We investigated the role of fibrin in PS+ platelet sorting.

Methods We used an 8-channel microfluidic assay of clotting over collagen (±tissue factor) at 100 s−1 initial wall shear rate. Temporal PS+ platelet sorting was measured using a Pearson's correlation coefficient between the annexin V distribution in a clot at 9 versus 15 minutes. Spatial PS+ platelet sorting was measured using an autocorrelation metric of the final annexin V distribution.

Results By 6 minutes, PS+ platelets were distributed throughout the platelet deposits and became highly spatially sorted by 15 minutes when thrombin and fibrin were blocked with Phe-Pro-Arg-chloromethylketone (PPACK). Fibrin polymerization (no PPACK) attenuated temporal and spatial PS sorting and clot contraction. With Gly-Pro-Arg-Pro (GPRP) added to block fibrin polymerization, PS sorting was prominent as was clot contraction. Exogenously added tissue plasminogen activator drove fibrinolysis that in turn promoted clot contraction and PS sorting, albeit to a lesser degree than the PPACK or GPRP conditions. Clots lacking fibrin displayed 3.6 times greater contraction than clots with fibrin.

Conclusion PS sorting correlated with clot contraction, as previously reported. However, fibrin inversely correlated with both percent contraction and PS sorting. Fibrin attenuated clot contraction and PS sorting relative to clots without fibrin.

Authors' Contributions

K.T.T. and S.L.D. designed experiments, analyzed and interpreted data, and wrote the manuscript. K.T.T. conducted experiments.


Supplementary Material



Publication History

Received: 04 March 2020

Accepted: 14 July 2020

Article published online:
22 September 2020

© 2021. Thieme. All rights reserved.

Georg Thieme Verlag KG
Rüdigerstraße 14, 70469 Stuttgart, Germany


  • References

  • 1 Heemskerk JWM, Bevers EM, Lindhout T. Platelet activation and blood coagulation. Thromb Haemost 2002; 88 (02) 186-193
  • 2 Stalker TJ, Traxler EA, Wu J. et al. Hierarchical organization in the hemostatic response and its relationship to the platelet-signaling network. Blood 2013; 121 (10) 1875-1885
  • 3 Heemskerk JWM, Mattheij NJA, Cosemans JMEM. Platelet-based coagulation: different populations, different functions. J Thromb Haemost 2013; 11 (01) 2-16
  • 4 Briedé JJ, Heemskerk JWM, Hemker HC, Lindhout T. Heterogeneity in microparticle formation and exposure of anionic phospholipids at the plasma membrane of single adherent platelets. Biochim Biophys Acta 1999; 1451 (01) 163-172
  • 5 Pang A, Cui Y, Chen Y. et al. Shear-induced integrin signaling in platelet phosphatidylserine exposure, microvesicle release, and coagulation. Blood 2018; 132 (05) 533-543
  • 6 Leventis PA, Grinstein S. The distribution and function of phosphatidylserine in cellular membranes. Annu Rev Biophys 2010; 39 (01) 407-427
  • 7 Agbani EO, van den Bosch MTJ, Brown E. et al. Coordinated membrane ballooning and procoagulant spreading in human platelets. Circulation 2015; 132 (15) 1414-1424
  • 8 Berny MA, Munnix ICA, Auger JM. et al. Spatial distribution of factor Xa, thrombin, and fibrin(ogen) on thrombi at venous shear. PLoS One 2010; 5 (04) e10415
  • 9 Podoplelova NA, Sveshnikova AN, Kotova YN. et al. Coagulation factors bound to procoagulant platelets concentrate in cap structures to promote clotting. Blood 2016; 128 (13) 1745-1755
  • 10 Suzuki J, Umeda M, Sims PJ, Nagata S. Calcium-dependent phospholipid scrambling by TMEM16F. Nature 2010; 468 (7325): 834-838
  • 11 Baig AA, Haining EJ, Geuss E. et al. TMEM16F-mediated platelet membrane phospholipid scrambling is critical for hemostasis and thrombosis but not thromboinflammation in mice-brief report. Arterioscler Thromb Vasc Biol 2016; 36 (11) 2152-2157
  • 12 Castoldi E, Collins PW, Williamson PL, Bevers EM. To the editor: compound heterozygosity for 2 novel TMEM16F mutations in a patient with Scott syndrome. Blood 2011; 117 (16) 4399-4400
  • 13 Delaney MK, Liu J, Kim K. et al. Agonist-induced platelet procoagulant activity requires shear and a Rac1-dependent signaling mechanism. Blood 2014; 124 (12) 1957-1967
  • 14 Munnix ICA, Cosemans JMEM, Auger JM, Heemskerk JWM. Platelet response heterogeneity in thrombus formation. Thromb Haemost 2009; 102 (06) 1149-1156
  • 15 Cosemans JMEM, Iserbyt BF, Deckmyn H, Heemskerk JWM. Multiple ways to switch platelet integrins on and off. J Thromb Haemost 2008; 6 (08) 1253-1261
  • 16 Munnix ICA, Kuijpers MJE, Auger J. et al. Segregation of platelet aggregatory and procoagulant microdomains in thrombus formation: regulation by transient integrin activation. Arterioscler Thromb Vasc Biol 2007; 27 (11) 2484-2490
  • 17 Nechipurenko DY, Receveur N, Yakimenko AO. et al. Clot contraction drives the translocation of procoagulant platelets to thrombus surface. Arterioscler Thromb Vasc Biol 2019; 39 (01) 37-47
  • 18 Chen Z, Lu J, Zhang C. et al. Microclot array elastometry for integrated measurement of thrombus formation and clot biomechanics under fluid shear. Nat Commun 2019; 10 (01) 2051
  • 19 Samson AL, Alwis I, Maclean JAA. et al. Endogenous fibrinolysis facilitates clot retraction in vivo. Blood 2017; 130 (23) 2453-2462
  • 20 Maloney SF, Brass LF, Diamond SL. P2Y12 or P2Y1 inhibitors reduce platelet deposition in a microfluidic model of thrombosis while apyrase lacks efficacy under flow conditions. Integr Biol 2010; 2 (04) 183-192
  • 21 Zhu S, Herbig BA, Li R. et al. In microfluidico: recreating in vivo hemodynamics using miniaturized devices. Biorheology 2015; 52 (5-6): 303-318
  • 22 Petersen NO, Höddelius PL, Wiseman PW, Seger O, Magnusson KE. Quantitation of membrane receptor distributions by image correlation spectroscopy: concept and application. Biophys J 1993; 65 (03) 1135-1146
  • 23 Nohe A, Petersen NO. Image Correlation Spectroscopy. Sci STKE 2007; (417) l7
  • 24 Hagen N, Dereniak EL. Gaussian profile estimation in two dimensions. Appl Opt 2008; 47 (36) 6842-6851
  • 25 Robertson C, George SC. Theory and practical recommendations for autocorrelation-based image correlation spectroscopy. J Biomed Opt 2012; 17 (08) 080801-1
  • 26 Mohapatra S, Weisshaar JC. Modified Pearson correlation coefficient for two-color imaging in spherocylindrical cells. BMC Bioinformatics 2018; 19 (01) 428
  • 27 Manders EMM, Stap J, Brakenhoff GJ, van Driel R, Aten JA. Dynamics of three-dimensional replication patterns during the S-phase, analysed by double labelling of DNA and confocal microscopy. J Cell Sci 1992; 103 (Pt 3): 857-862
  • 28 Vyavahare Scott N, Hanson SR, Kohn JN. In vitro and in vivo evaluation of the site-specific administration of the thrombin inhibitor PPACK. J Control Release 1993; 27: 165-173
  • 29 Yamazumi K, Doolittle RF. The synthetic peptide Gly-Pro-Arg-Pro-amide limits the plasmic digestion of fibrinogen in the same fashion as calcium ion. Protein Sci 1992; 1 (12) 1719-1720
  • 30 Whyte CS, Swieringa F, Mastenbroek TG. et al. Plasminogen associates with phosphatidylserine-exposing platelets and contributes to thrombus lysis under flow. Blood 2015; 125 (16) 2568-2578
  • 31 Tutwiler V, Litvinov RI, Lozhkin AP. et al. Kinetics and mechanics of clot contraction are governed by the molecular and cellular composition of the blood. Blood 2016; 127 (01) 149-159
  • 32 Tutwiler V, Wang H, Litvinov RI, Weisel JW, Shenoy VB. Interplay of platelet contractility and elasticity of fibrin/erythrocytes in blood clot retraction. Biophys J 2017; 112 (04) 714-723
  • 33 Aleman MM, Byrnes JR, Wang JG. et al. Factor XIII activity mediates red blood cell retention in venous thrombi. J Clin Invest 2014; 124 (08) 3590-3600
  • 34 Byrnes JR, Duval C, Wang Y. et al. Factor XIIIa-dependent retention of red blood cells in clots is mediated by fibrin a-chain crosslinking. Blood 2015; 126 (16) 1940-1948
  • 35 van Geffen JP, Swieringa F, Heemskerk JWM. Platelets and coagulation in thrombus formation: aberrations in the Scott syndrome. Thromb Res 2016; 141 (Suppl. 02) S12-S16
  • 36 Zhu S, Lu Y, Sinno T, Diamond SL. Dynamics of thrombin generation and flux from clots during whole human blood flow over collagen/tissue factor surfaces. J Biol Chem 2016; 291 (44) 23027-23035
  • 37 Zhu S, Chen J, Diamond SL. Establishing the transient mass balance of thrombosis: from tissue factor to thrombin to fibrin under venous flow. Arterioscler Thromb Vasc Biol 2018; 38 (07) 1528-1536
  • 38 Yu X, Diamond SL. Fibrin modulates shear-induced NETosis in sterile occlusive thrombi formed under haemodynamic flow. Thromb Haemost 2019; 119 (04) 586-593
