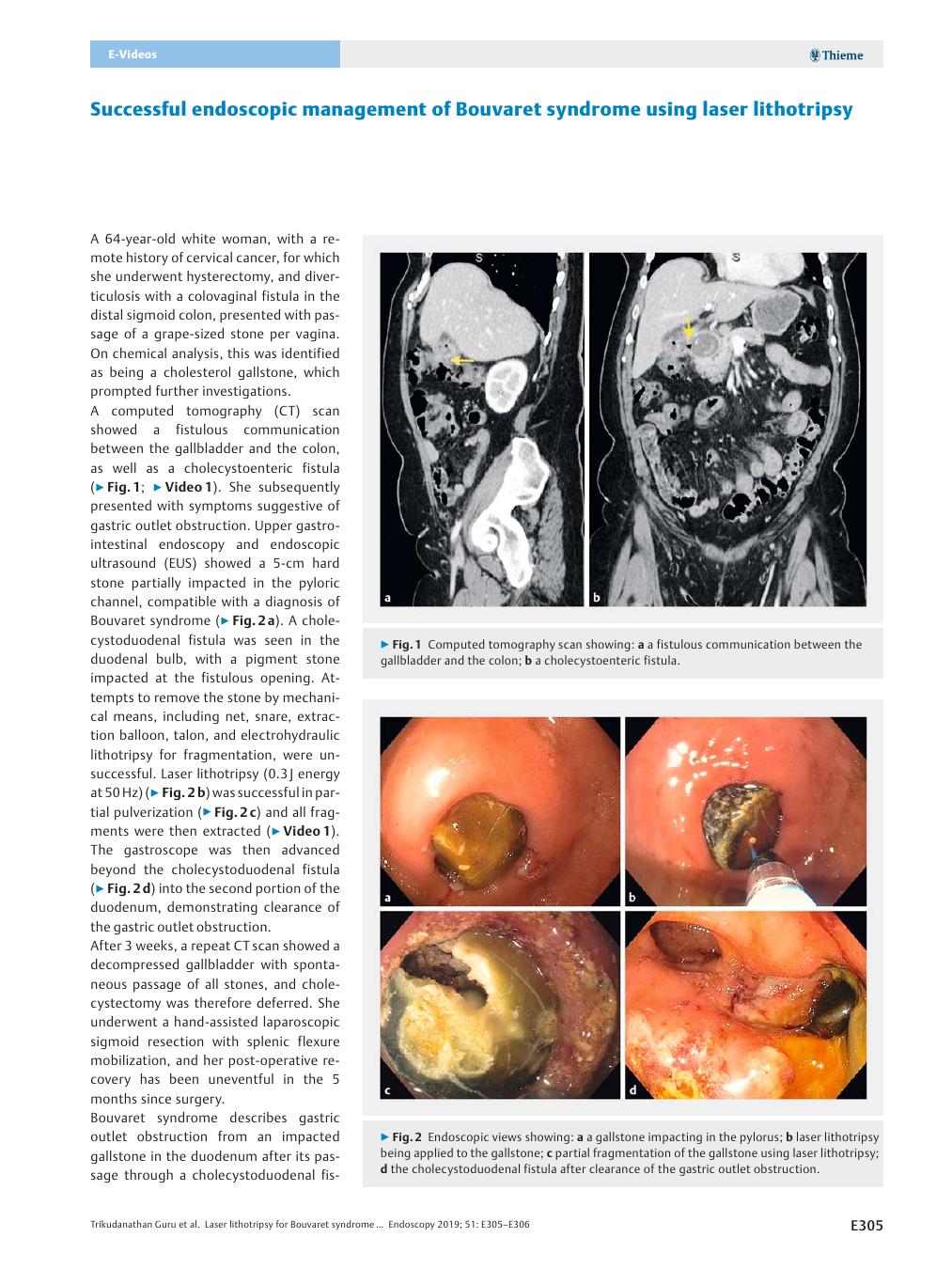

Successful endoscopic management of Bouvaret syndrome using laser lithotripsy
23 May 2019 (online)
A 64-year-old white woman, with a remote history of cervical cancer, for which she underwent hysterectomy, and diverticulosis with a colovaginal fistula in the distal sigmoid colon, presented with passage of a grape-sized stone per vagina. On chemical analysis, this was identified as being a cholesterol gallstone, which prompted further investigations.
A computed tomography (CT) scan showed a fistulous communication between the gallbladder and the colon, as well as a cholecystoenteric fistula ([Fig. 1]; [Video 1]). She subsequently presented with symptoms suggestive of gastric outlet obstruction. Upper gastrointestinal endoscopy and endoscopic ultrasound (EUS) showed a 5-cm hard stone partially impacted in the pyloric channel, compatible with a diagnosis of Bouvaret syndrome ([Fig. 2 a]). A cholecystoduodenal fistula was seen in the duodenal bulb, with a pigment stone impacted at the fistulous opening. Attempts to remove the stone by mechanical means, including net, snare, extraction balloon, talon, and electrohydraulic lithotripsy for fragmentation, were unsuccessful. Laser lithotripsy (0.3 J energy at 50 Hz) ([Fig. 2 b]) was successful in partial pulverization ([Fig. 2 c]) and all fragments were then extracted ([Video 1]). The gastroscope was then advanced beyond the cholecystoduodenal fistula ([Fig. 2 d]) into the second portion of the duodenum, demonstrating clearance of the gastric outlet obstruction.
Video 1 Computed tomography views of the fistulous communications; endoscopic views of the impacted gallstone, unsuccessful attempts to remove it, and application of laser lithotripsy with partial fragmentation; view of the cholecystoduodenal fistula after clearance of the gastric outlet obstruction.
After 3 weeks, a repeat CT scan showed a decompressed gallbladder with spontaneous passage of all stones, and cholecystectomy was therefore deferred. She underwent a hand-assisted laparoscopic sigmoid resection with splenic flexure mobilization, and her post-operative recovery has been uneventful in the 5 months since surgery.
Bouvaret syndrome describes gastric outlet obstruction from an impacted gallstone in the duodenum after its passage through a cholecystoduodenal fistula . Our case presents an unusual journey of a migrating stone fragment, first through a cholecystoduodenal fistula into the colon, then through a colovaginal fistula, which was followed ultimately by per-vaginal passage. We also report the successful use of laser lithotripsy for precise targeting of energy onto a stone with minimal tissue injury. This offers a less invasive and low risk therapeutic alternative to surgery .
This video was previously awarded the ACG presidential poster award and presented at American College of Gastroenterology, 2018, Philadelphia.
Endoscopy E-Videos is a free access online section, reporting on interesting cases and new techniques in gastroenterological endoscopy. All papers include a high
quality video and all contributions are
freely accessible online.
This section has its own submission
- 1 Cappell MS, Davis M. Characterization of Bouveret’s syndrome: a comprehensive review of 128 cases. Am J Gastroenterol 2006; 101: 2139-2146
- 2 Duenas CS, Fernandez-Urien I, Iriarte MR. et al. Laser lithotripsy resolution for Bouveret syndrome. Endoscopy 2017; 49 (Suppl. 01) E101-E102
