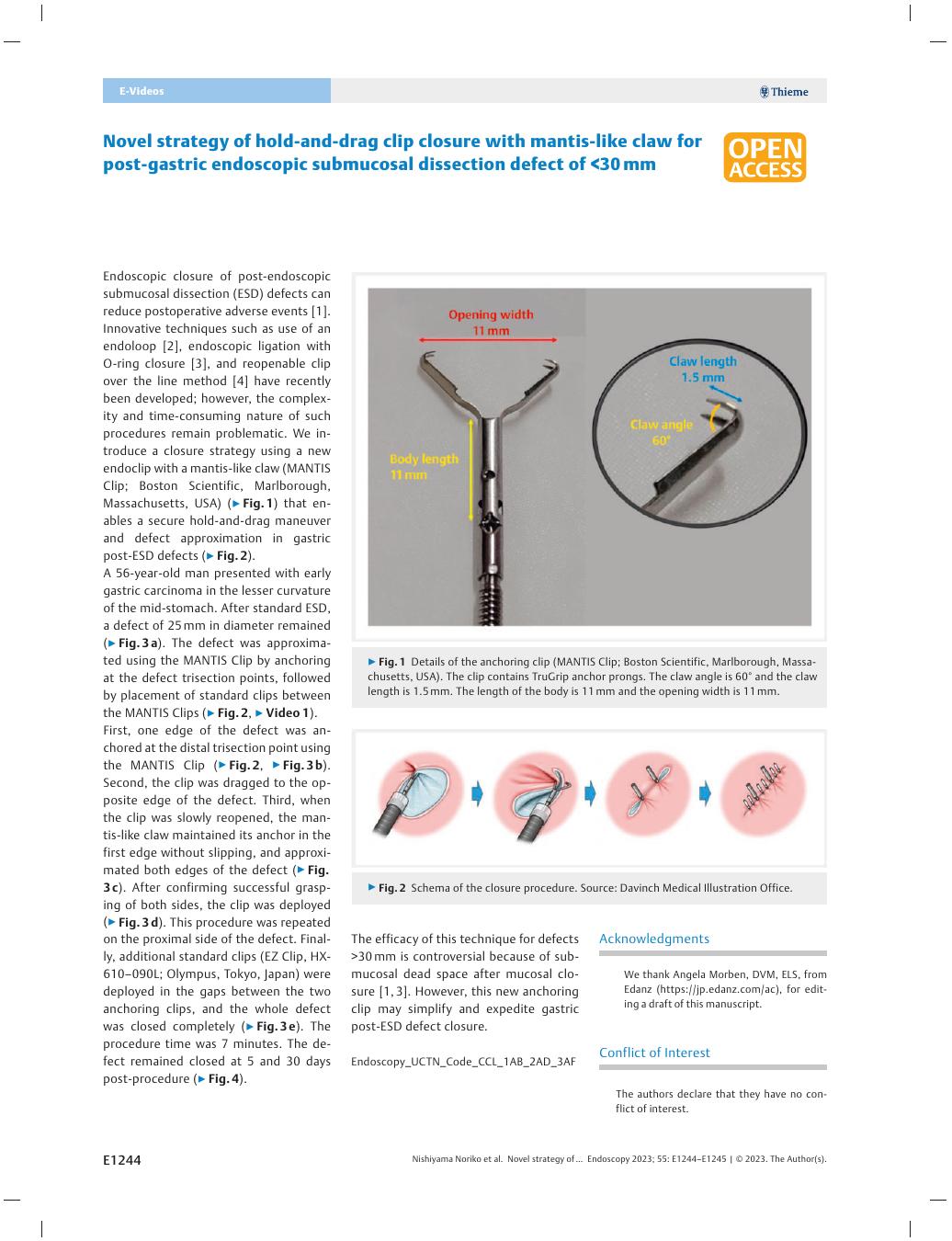

Novel strategy of hold-and-drag clip closure with mantis-like claw for post-gastric endoscopic submucosal dissection defect of <30 mm

Endoscopic closure of post-endoscopic submucosal dissection (ESD) defects can reduce postoperative adverse events [1]. Innovative techniques such as use of an endoloop [2], endoscopic ligation with O-ring closure [3], and reopenable clip over the line method [4] have recently been developed; however, the complexity and time-consuming nature of such procedures remain problematic. We introduce a closure strategy using a new endoclip with a mantis-like claw (MANTIS Clip; Boston Scientific, Marlborough, Massachusetts, USA) ([Fig. 1]) that enables a secure hold-and-drag maneuver and defect approximation in gastric post-ESD defects ([Fig. 2]).

Fig. 1 Details of the anchoring clip (MANTIS Clip; Boston Scientific, Marlborough, Massachusetts, USA). The clip contains TruGrip anchor prongs. The claw angle is 60° and the claw length is 1.5 mm. The length of the body is 11 mm and the opening width is 11 mm.

Fig. 2 Schema of the closure procedure. Source: Davinch Medical Illustration Office.

A 56-year-old man presented with early gastric carcinoma in the lesser curvature of the mid-stomach. After standard ESD, a defect of 25 mm in diameter remained ([Fig. 3] a). The defect was approximated using the MANTIS Clip by anchoring at the defect trisection points, followed by placement of standard clips between the MANTIS Clips ([Fig. 2], [Video 1]).

Fig. 3 Defect closure. a After standard endoscopic submucosal dissection, a defect of 25 mm in diameter remained. b We held the edge of the defect at the distal trisection point and closed the clip. c The closed clip was dragged to the opposite edge of the defect. The clip was slowly reopened, without slipping from the anchored mucosa, and then reclosed with inclusion of the opposite edge of the defect. d After confirming that sufficient mucosa from both sides was grasped, the clip was deployed. e Finally, additional clips were deployed in the gaps between the two anchoring clips, and the whole defect was closed completely.

Use of new anchoring clips for closure of an artificial gastric defect. Source for graphical illustration: Davinch Medical Illustration Office.Video 1

First, one edge of the defect was anchored at the distal trisection point using the MANTIS Clip ([Fig. 2], [Fig. 3] b). Second, the clip was dragged to the opposite edge of the defect. Third, when the clip was slowly reopened, the mantis-like claw maintained its anchor in the first edge without slipping, and approximated both edges of the defect ([Fig. 3] c). After confirming successful grasping of both sides, the clip was deployed ([Fig. 3] d). This procedure was repeated on the proximal side of the defect. Finally, additional standard clips (EZ Clip, HX-610–090L; Olympus, Tokyo, Japan) were deployed in the gaps between the two anchoring clips, and the whole defect was closed completely ([Fig. 3] e). The procedure time was 7 minutes. The defect remained closed at 5 and 30 days post-procedure ([Fig. 4]).

Fig. 4 The closure and all clips remained intact postoperatively. a Assessment at 5 days. b Assessment at 30 days.

The efficacy of this technique for defects >30 mm is controversial because of submucosal dead space after mucosal closure [1] [3]. However, this new anchoring clip may simplify and expedite gastric post-ESD defect closure.

Endoscopy_UCTN_Code_CCL_1AB_2AD_3AF

Publication History

Article published online:
21 December 2023

• References

• 1 Kobara H, Tada N, Nishiyama N. et al. Clinical and technical outcomes of endoscopic closure of postendoscopic submucosal dissection defects: literature review over one decade. Dig Endosc 2023; 35: 216-231
• 2 Akimoto T, Goto M, Sasaki M. et al. “Hold-and-drag” closure technique using repositionable clips for large mucosal defects after colonic endoscopic submucosal dissection. Endosc Int Open 2016; 4: E1068-E1072
• 3 Nomura T, Kamei A, Sugimoto S. et al. New modified hook device for endoloop closure of the mucosal defect after gastric endoscopic submucosal dissection. Endoscopy 2018; 50: E222-E223
• 4 Nishiyama N, Kobara H, Kobayashi N. et al. Efficacy of endoscopic ligation with O-ring closure for prevention of bleeding after gastric endoscopic submucosal dissection under antithrombotic therapy: a prospective observational study. Endoscopy 2022; 54: 1078-1084
