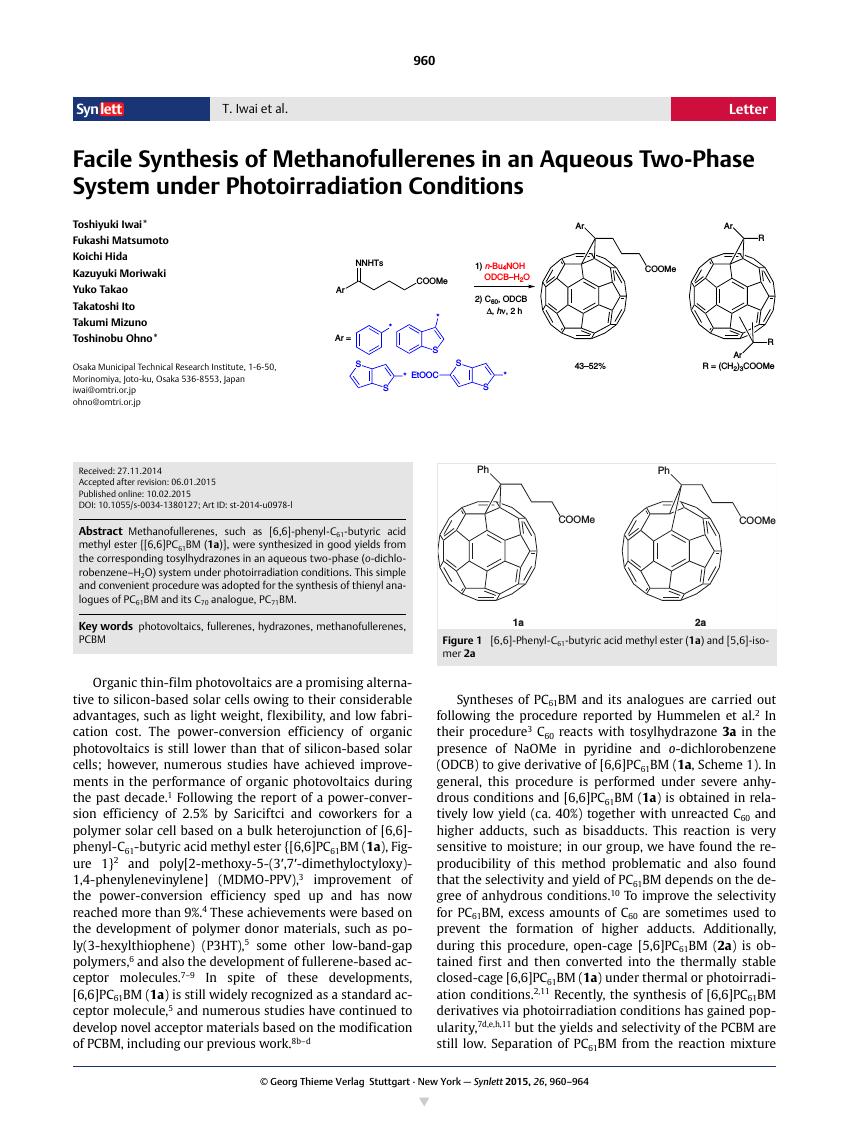

Facile Synthesis of Methanofullerenes in an Aqueous Two-Phase System under Photoirradiation Conditions

Abstract

Methanofullerenes, such as [6,6]-phenyl-C₆₁-butyric acid methyl ester {[6,6]PC₆₁BM (1a)}, were synthesized in good yields from the corresponding tosylhydrazones in an aqueous two-phase (o-dichlorobenzene–H₂O) system under photoirradiation conditions. This simple and convenient procedure was adopted for the synthesis of thienyl analogues of PC₆₁BM and its C₇₀ analogue, PC₇₁BM.
