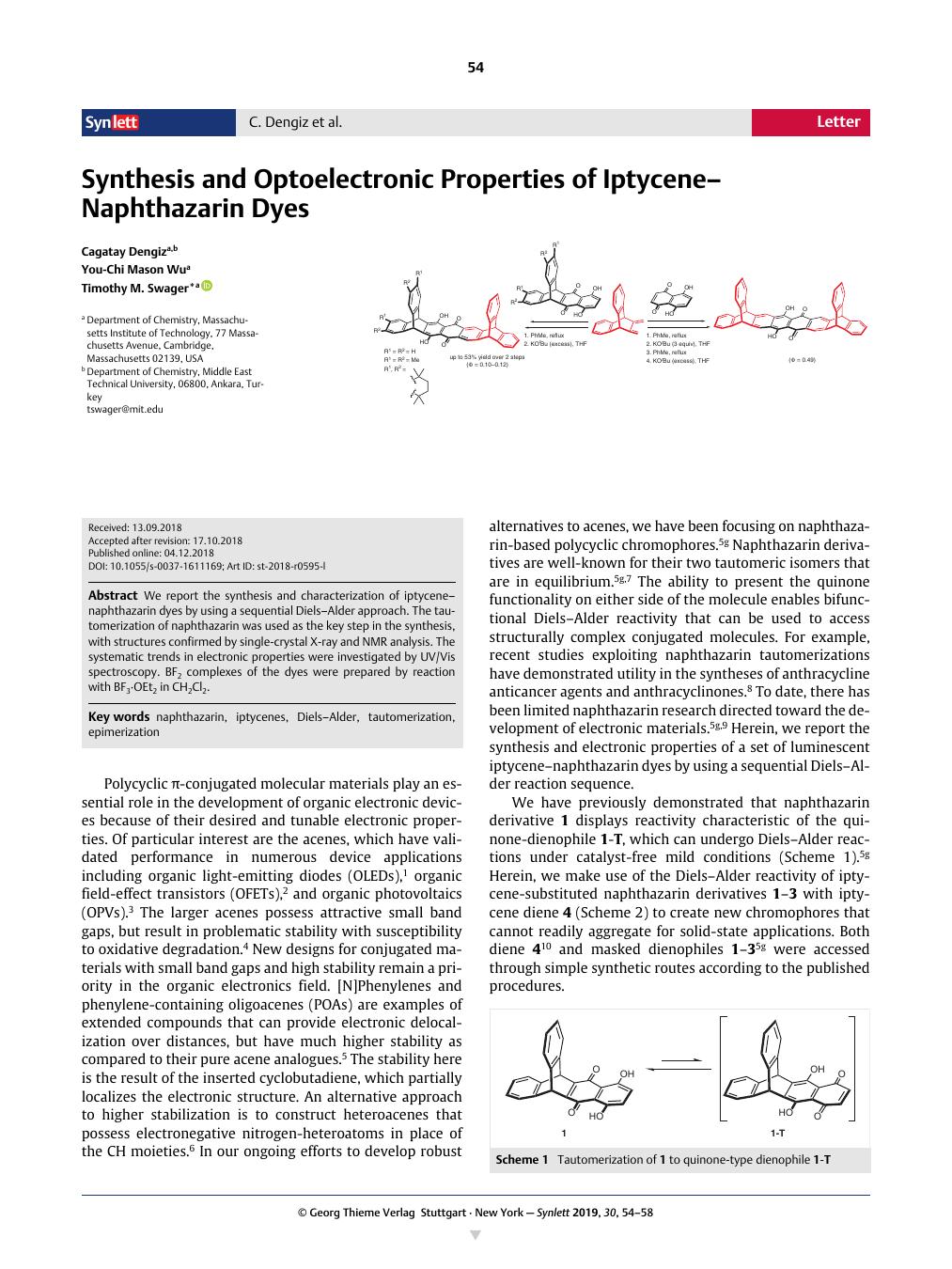

Synthesis and Optoelectronic Properties of Iptycene–Naphthazarin Dyes

Abstract

We report the synthesis and characterization of iptycene–naphthazarin dyes by using a sequential Diels–Alder approach. The tautomerization of naphthazarin was used as the key step in the synthesis, with structures confirmed by single-crystal X-ray and NMR analysis. The systematic trends in electronic properties were investigated by UV/Vis spectroscopy. BF₂ complexes of the dyes were prepared by reaction with BF₃·OEt₂ in CH₂Cl₂.

Key words

naphthazarin - iptycenes - Diels–Alder - tautomerization - epimerization

• References and Notes

• 1a Odom SA, Parkin SR, Anthony JE. Org. Lett. 2003; 5: 4245
• 1b Wolak MA, Jang B.-B, Palilis LC, Kafafi ZH. J. Phys. Chem. B 2004; 108: 5492
• 1c Baryshnikov GV, Gawrys P, Ivaniuk K, Witulski B, Whitby RJ, Al-Muhammad A, Minaev B, Cherpak V, Stakhira P, Volyniuk D, Wiosna-Salyga G, Luszczynska B, Lazauskas A, Tamulevicius S, Grazulevicius JV. J. Mater. Chem. C 2016; 4: 5795
• 2a Kelley TW, Baude PF, Gerlach C, Ender DE, Muyres D, Haase MA, Vogel DE, Theiss SD. Chem. Mater. 2004; 16: 4413
• 2b Anthony JE. Chem. Rev. 2006; 106: 5028
• 2c Anthony JE. Angew. Chem. Int. Ed. 2008; 47: 452
• 3a Rand BP, Genoe J, Heremans P, Poortmans J. Prog. Photovoltaics 2007; 15: 659
• 3b Lim Y.-F, Shu Y, Parkin SR, Anthony JE, Malliaras GG. J. Mater. Chem. 2009; 19: 3049
• 3c Shu Y, Lim Y.-F, Li Z, Purushothaman B, Hallani R, Kim JE, Parkin SR, Malliaras GG, Anthony JE. Chem. Sci. 2011; 2: 363
• 4 Mondal R, Adhikari RM, Shah BK, Neckers DC. Org. Lett. 2007; 9: 2505
• 5a Helson HE, Vollhardt PC, Yang Z.-Y. Angew. Chem. Int. Ed. Engl. 1985; 24: 114
• 5b Schleifenbaum A, Feeder N, Vollhardt KP. C. Tetrahedron Lett. 2001; 42: 7329
• 5c Parkhurst RR, Swager TM. J. Am. Chem. Soc. 2012; 134: 15351
• 5d Parkhurst RR, Swager TM. Top. Curr. Chem. 2014; 350: 141
• 5e Biegger P, Schaffroth M, Patze C, Tverskoy O, Rominger F, Bunz UH. F. Chem. Eur. J. 2015; 21: 7048
• 5f Luppino S, Swager T. Synlett 2017; 28: 323
• 5g Dengiz C, Luppino SP, Gutierrez GD, Swager TM. J. Org. Chem. 2017; 82: 7470
• 5h Jin Z, Teo YC, Zulaybar NG, Smith MD, Xia Y. J. Am. Chem. Soc. 2017; 139: 1806
• 5i Jin Z, Teo YC, Teat SJ, Xia Y. J. Am. Chem. Soc. 2017; 139: 15933
• 6a Bunz UH. F. Chem. Eur. J. 2009; 15: 6780
• 6b Appleton A, Barlow S, Marder S, Hardcastle K, Bunz U. Synlett 2011; 1983
• 6c Engelhart JU, Lindner BD, Tverskoy O, Rominger F, Bunz UH. F. Chem. Eur. J. 2013; 19: 15089
• 6d Li J, Zhang Q. Synlett 2013; 24: 686
• 6e Yang S, Shan B, Xu X, Miao Q. Chem. Eur. J. 2016; 22: 6637
• 7a Fariña F, Vega JC. Tetrahedron Lett. 1972; 1655
• 7b Echavarren A, Prados P, Farina F. Tetrahedron 1984; 40: 4561
• 8a Kelly TR, Gillard JW, Goerner RN, Lyding JM. J. Am. Chem. Soc. 1977; 99: 5513
• 8b de Bie JF. M, Peperzak RM, Daenen MJ, Scheeren HW. Tetrahedron 1993; 49: 6463
• 9 Yao M, Umetani S, Ando H, Kiyobayashi T, Takeichi N, Kondo R, Takeshita HT. J. Mater. Sci. 2017; 52: 12401
• 10 Hart H, Bashir-Hashemi A, Luo J, Meador MA. Tetrahedron 1986; 42: 1641
• 11a Sauer J, Sustmann R. Angew. Chem. Int. Ed. Engl. 1980; 19: 779
• 11b Nicolaou KC, Snyder SA, Montagnon T, Vassilikogiannakis G. Angew. Chem. Int. Ed. 2002; 41: 1668
• 12 Ono K, Yamaguchi H, Taga K, Saito K, Nishida JL, Yamashita Y. Org. Lett. 2009; 11: 149
• 13 Ono K, Hashizume J, Yamaguchi H, Tomura M, Nishida JI, Yamashita Y. Org. Lett. 2009; 11: 4326
• 14 Only the general procedures for the synthesis of the target dyes 5–7 are reported here; all other details and protocols can be found in the Supporting Information. Synthesis of Iptycene–Naphthazarin Dyes 5–7; General Procedure: Dienophiles 1–3 (1 equiv) and diene 4 (1 equiv) were added to a flame-dried Schlenk flask with stirrer bar, and were dissolved in the minimal amount of anhydrous toluene (1–2 mL). The headspace was purged with argon, then heated to reflux overnight (111 °C). The solvent was evaporated under reduced pressure, and the crude material was redissolved in tetrahydrofuran (20 mL). After addition of KO^tBu (18 equiv) and stirring under ambient conditions for 1–3 h, the blue reaction mixture was poured over NH₄Cl (aq) and extracted with EtOAc. The organic layer was dried with MgSO₄, filtered and evaporated. Flash chromatography (SiO₂; hexanes/CH₂Cl₂, 1:1 or 1:2) gave 5–7 as orange solids in 30–53% yield. Compound 5: R_f = 0.35 (SiO₂; hexanes/CH₂Cl₂, 1:1); m.p. >300 °C; ¹H NMR (400 MHz, CD₂Cl₂, 298 K): δ = 5.68 (s, 2 H), 6.10 (s, 2 H), 7.01–7.09 (m, 8 H), 7.41–7.51 (m, 8 H), 8.26 (s, 2 H), 13.18 (s, 2 H); ¹³C NMR (100 MHz, CD₂Cl₂, 298 K): δ = 187.5, 153.6, 152.6, 146.6, 144.5, 144.0, 132.1, 126.5, 126.2, 124.73, 124.65, 122.0, 112.0, 54.5, 48.0; UV/Vis (CH₂Cl₂): λ _max (ε) = 496 (9570), 287 (50230), 259 nm (21130 M^–1 cm^–1); HRMS (ESI): m/z [M]⁺ calcd for C₄₂H₂₄O₄ ⁺: 592.1675; found: 592.1676. Compound 6: R_f = 0.59 (SiO₂; hexanes/CH₂Cl₂, 1:1); m.p. >300 °C; ¹H NMR (400 MHz, CD₂Cl₂, 298 K): δ = 1.20 (s, 12 H), 1.23 (s, 12 H), 1.61 (br. s, 8 H), 5.68 (s, 2 H), 5.94 (s, 2 H), 6.95–7.10 (m, 4 H), 7.40 (s, 4 H), 7.42–7.51 (m, 4 H), 8.27 (s, 2 H), 13.21 (s, 2 H); ¹³C NMR (100 MHz, CD₂Cl₂, 298 K): δ = 187.4, 153.5, 152.5, 147.0, 144.0, 142.7, 141.5, 132.2, 126.4, 124.6, 122.7, 122.0, 111.9, 54.5, 47.4, 35.6, 34.8, 32.2, 32.1; UV/Vis (CH₂Cl₂): λ _max (ε) = 497 (10130), 287 (40040), 257 nm (18420 M^–1 cm^–1); HRMS (ESI): m/z [M]⁺ calcd for C₅₈H₅₂O₄ ⁺: 812.3866; found: 812.3887. Compound 7: R_f = 0.41 (SiO₂; hexanes/CH₂Cl₂, 1:1); m.p. 288–289 °C; ¹H NMR (400 MHz, CD₂Cl₂, 298 K): δ = 2.14 (s, 12 H), 5.68 (s, 2 H), 5.92 (s, 2 H), 7.05 (br. dd, J = 5.5, 3.1 Hz, 4 H), 7.21 (s, 4 H), 7.45 (br. dd, J = 5.5, 3.1 Hz, 4 H), 8.26 (s, 2 H), 13.17 (s, 2 H); ¹³C NMR (100 MHz, CD₂Cl₂, 298 K): δ = 187.4, 153.4, 152.5, 147.3, 144.1, 142.3, 134.1, 132.2, 126.4, 125.9, 124.6, 122.0, 111.9, 54.5, 47.1, 19.7; UV/Vis (CH₂Cl₂): λ _max (ε) = 497 (9425), 288 (38750), 257 nm (17170 M^–1 cm^–1); HRMS (ESI): m/z [M + H]⁺ calcd for C₄₆H₃₃O₄ ⁺: 649.2379; found: 649.2401.
